Manual Butt Fusion Machine V160M PLUS 50MM-160MM (2" IPS - 6" IPS)

Categories: Manual Butt Fusion Machines
Brand: RIYANG
Model: Manual Butt Fusion Machines
Certificate: CE, ISO9001
Packing Material: Plywood Box
MOQ: 1 set

Download: Product Info (PDF)

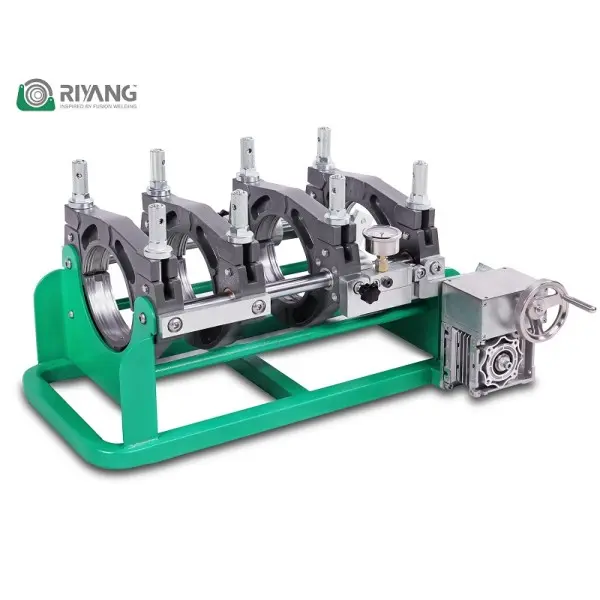

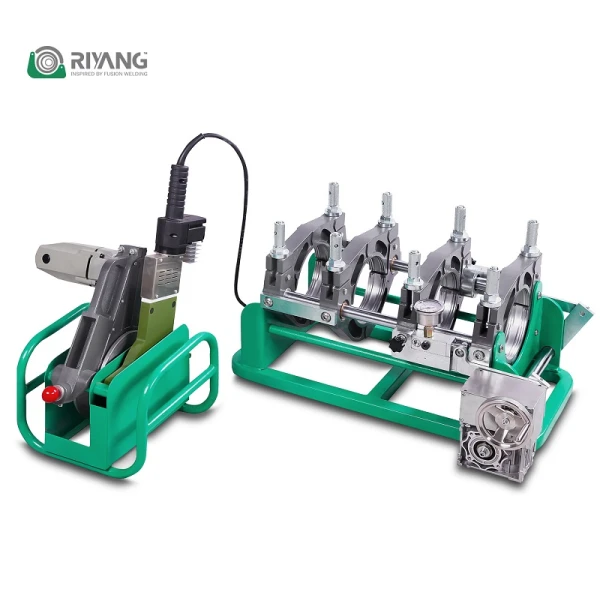

Manual Butt Fusion Machine V160M PLUS 50MM-160MM (2" IPS - 6" IPS)

Riyang V series M is an on-site manual butt fusion welding machine with a pressure gauge.
It is used to butt weld pipe and fittings such as elbow, tees, wye, and flange necks without any additional equipment by simply adjusting the clamps and drag bar.

It is suitable for welding plastic pipes and fittings made of HDPE, PP, PVDF, and other thermoplastics material.

WELDING RANGE O.D.: 50MM - 160MM                                 POWER SUPPLY: 1.8KW

POWER SUPPLY: 220V±10%, 50/60HZ                                    TEMPERATURE RANGE: MAX. 300ºC

GROSS WEIGHT: 74KGS                                                           PACKING MATERIAL: PLYWOOD BOX

PACKING DIMENSION
450*480*420 MM
380*420*570 MM

What's special about the
V160M PLUS?

Pressure control is more accurate, can match the hydraulic mode, there're full of spring-pointer type in the market, the longer it operates the higher the error rate will be, as the spring will lose elasticity.

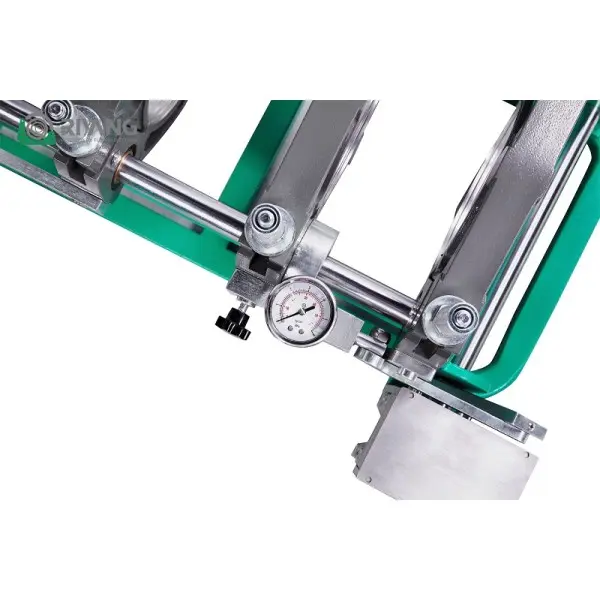

Our pressure gauge is oil pressure type, which is installed with the cylinder cavity, which is equipped with a seal ring, can detect accurate pressure.

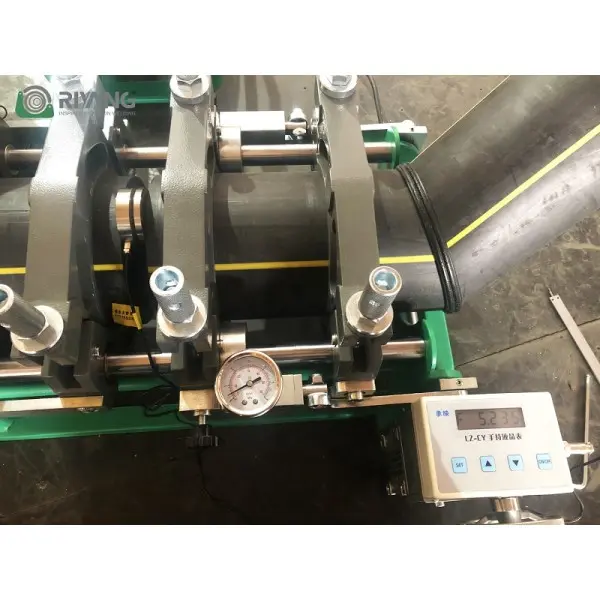

And RIYANG data logger is also compatible with it.

OPTIONS
