Hydraulic Butt Fusion Machine V800 500MM-800MM | Fusion Welding Machine Manufacturer

Categories: Hydraulic Butt Fusion Machines
Brand: RIYANG
Model: V800
Certificate: CE, ISO9001
Packing Material: Plywood Box
MOQ: 1set
Working Range in mm: 500mm -800mm
Working Range in Inch: 20 - 32" IPS
Working Pressure Range: 0 - 120Bar
HDPE Welding Standard Applied: ISO21307, DVS2207/1, ASTM F2620 etc.

Download: Product Info (PDF)

LEARN MORE

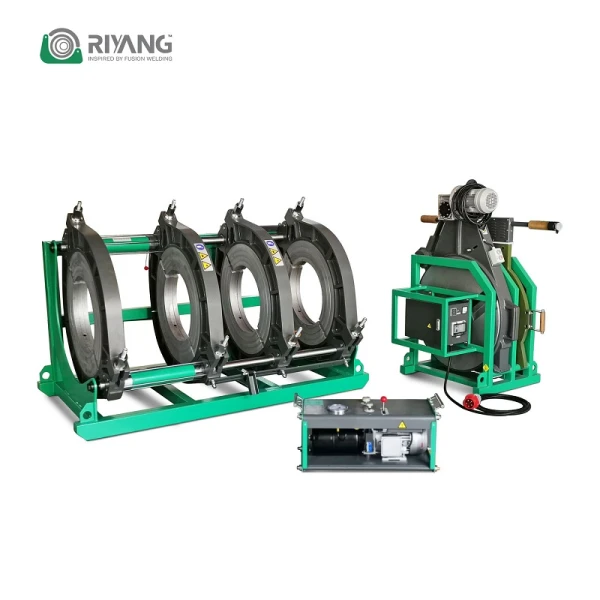

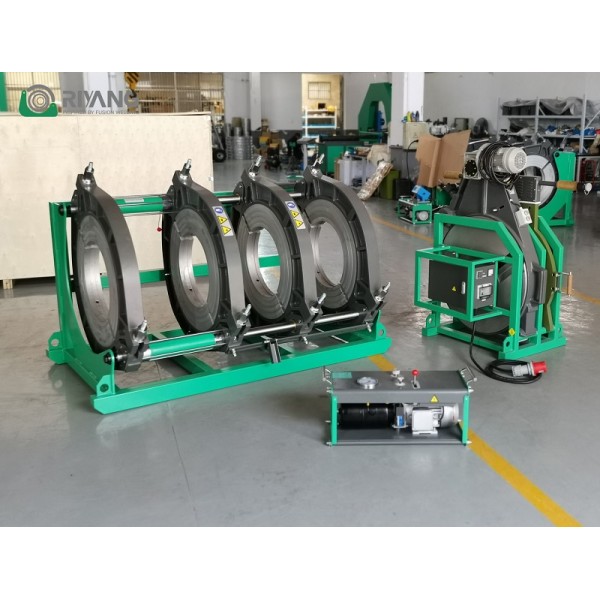

Hydraulic Butt Fusion Machine V800 500MM-800MM

The V800 Butt Fusion Welding Machine from RIYANG is designed to meet the demanding requirements of various applications, ensuring precise and reliable fusion welding. Key application areas include:

● Water Infrastructure: Ideal for joining thermoplastic pipes in water supply networks, guaranteeing secure and leak-free connections.
● Gas Distribution Systems: A reliable solution for welding pipes in gas distribution systems, ensuring the integrity of gas infrastructure.
● Industrial Pipelines: Suited for a range of industrial applications utilizing thermoplastic pipes, providing durable fusion joints.
● Mining Industry: The V800 excels in the mining sector, delivering efficient fusion welding for pipelines critical to mining operations, ensuring dependable and durable connections for water, chemicals, or other resources.

PRODUCT DETAILS

WELDING RANGE O.D.: (400*) 500 - 800MM WELDING RANGE INCH: 20" - 32" IPS
POWER SUPPLY: 380V±10%, 50/60 HZ TEMPERATURE RANGE: MAX. 280ºC
HEATER POWER: 12.5 KW TRIMMER POWER: 2.2KW
PACKING DIMENSION:
2200*1420*1440 MM
1350*950*1500 MM
800*350*400 MM

PUMP POWER: 2.2KW WORKING PRESSURE RANGE: 0 - 120 BAR
GROSS WEIGHT: 1290KGS

FEATURES

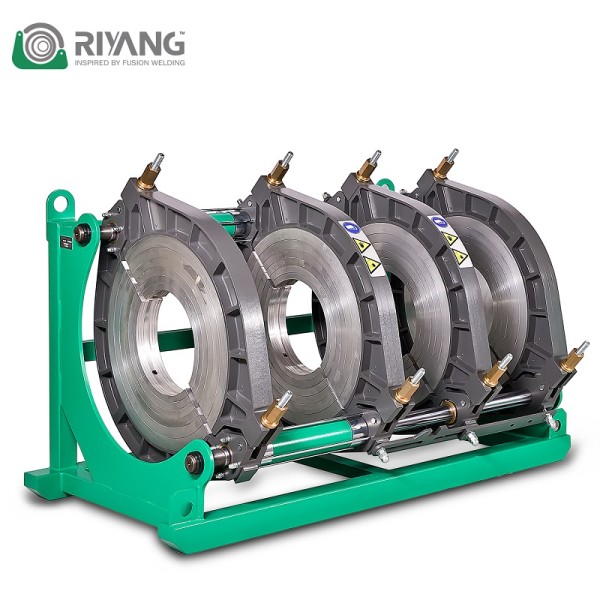

Machine Chassis

● The compact and robust frame structure resists deformation and oil leakage when handling thick pipes with extreme parameters.
● Key hydraulic components are sourced from industry-leading suppliers, primarily from Germany, Italy, and Japan.

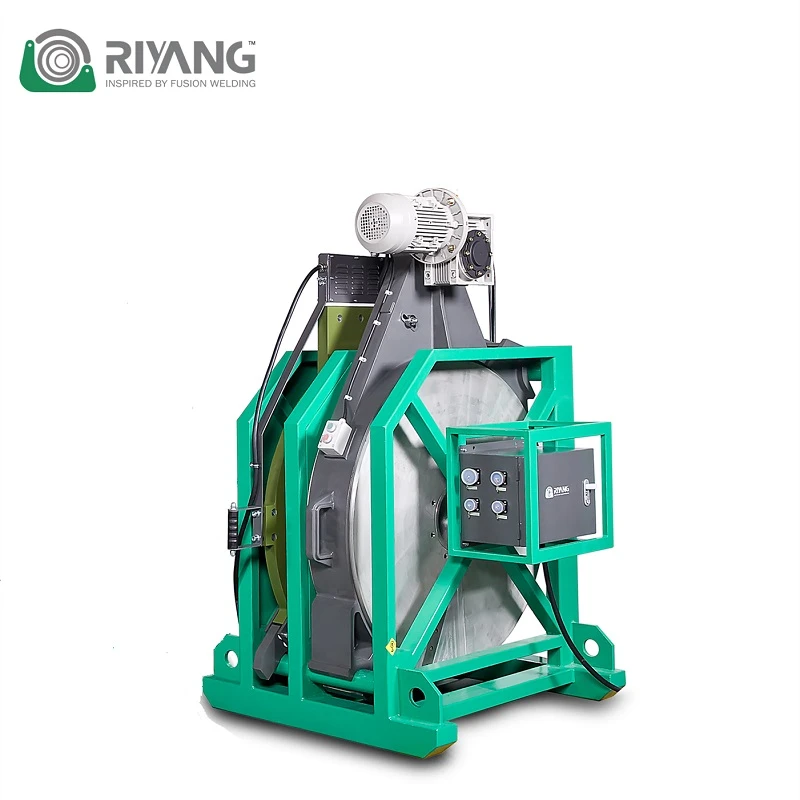

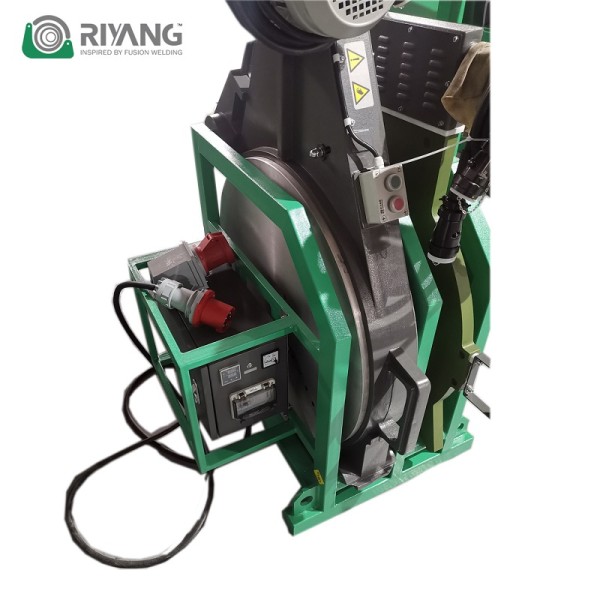

Heating Plate and Trimmer

● Utilizes Teflon material from a leading industry brand, reducing adhesion between the heating plate and melted plastic for an extended service life.
● Each side of the heating plate maintains a temperature difference of less than 7°C.
● The stainless steel construction of the junction box ensures corrosion resistance.
● Employs a powerful electric drill for efficient pipe milling with a long service life.
● Ergonomic operation handle designed in accordance with ergonomic principles.

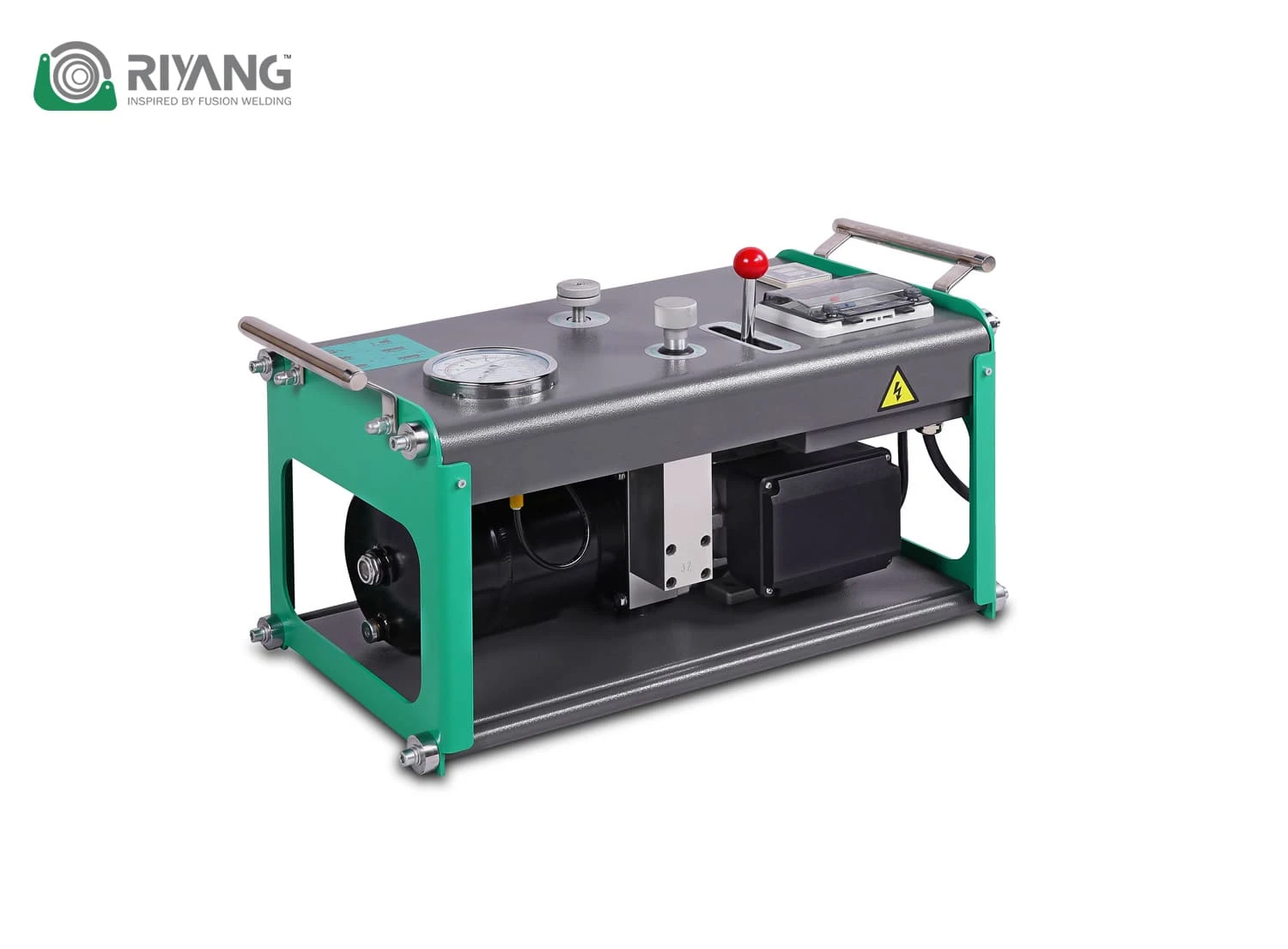

Power Station

● Robust hydraulic power with a maximum system pressure of up to 120 bar.
● Pressure valves employ cartridge valves for quick maintenance and repair.
● Precise temperature control reduces the discrepancy between actual and displayed temperature values, ensuring welding quality.
● The integral frame features a quick and detachable structure for efficient maintenance and repair.
● Compact and robust frame structure resists deformation under external pressure.
