Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2" IPS -6" IPS)

Categories: Hydraulic Butt Fusion Machines
Brand: RIYANG
Model: V160 BEE
Certificate: CE, ISO9001
Packing Material: Plywood Box
MOQ: 1set
Working Range in mm: 50mm - 160mm
Working Range in Inch: 2" - 6" IPS
Working Pressure Range: 0 - 80Bar
HDPE Welding Standard Applied: ISO21307, DVS2207/1, ASTM F2620 etc.

Download: Product Info (PDF)

LEARN MORE

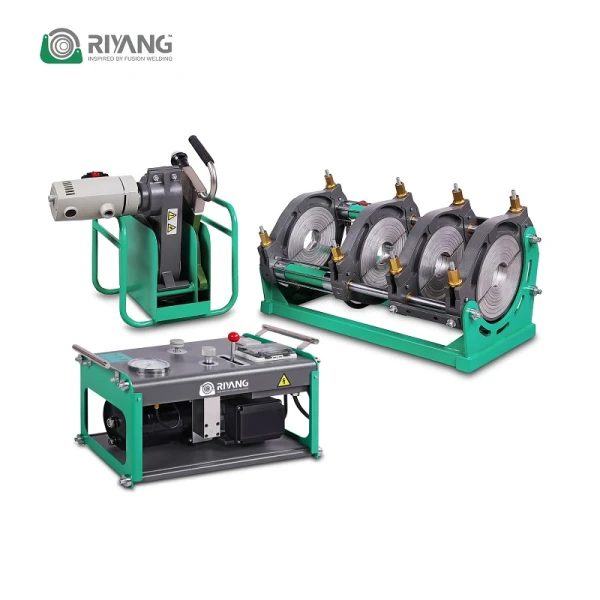

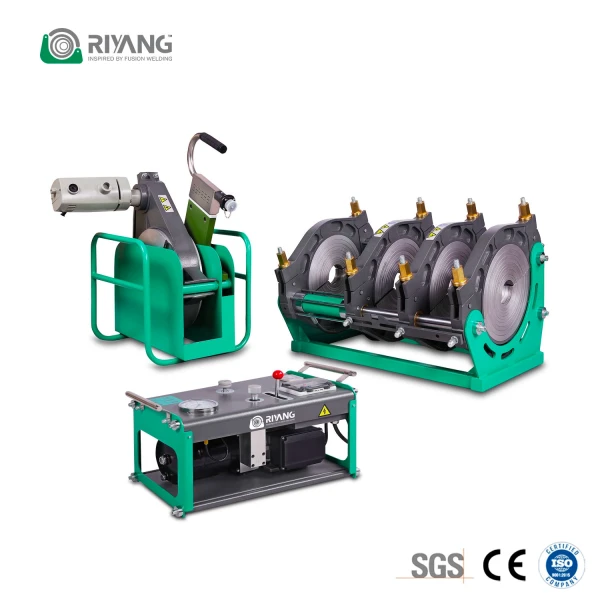

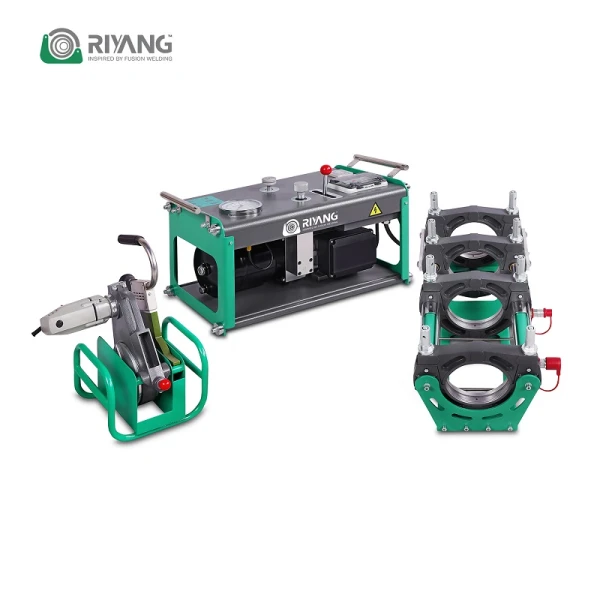

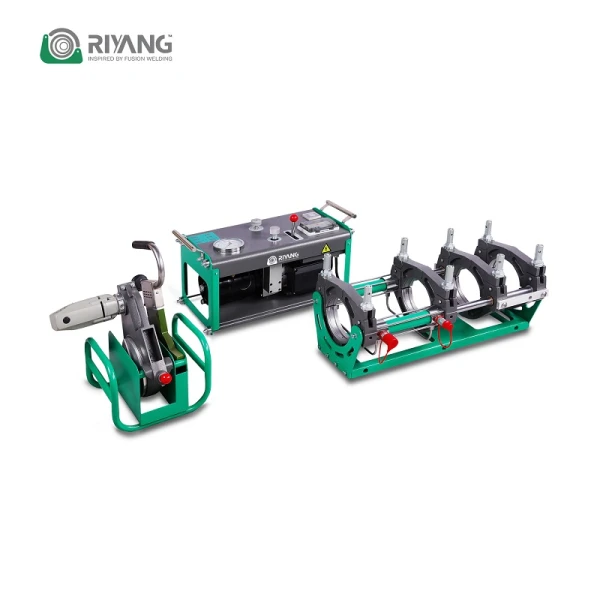

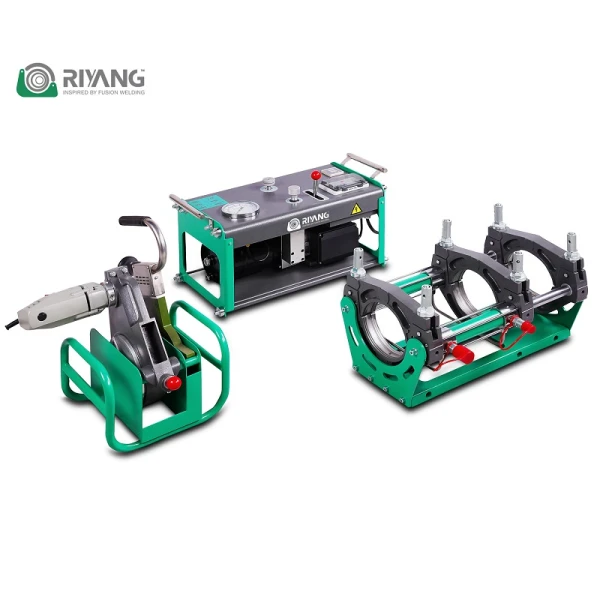

Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2" IPS -6" IPS)

The V160 BEE Butt Fusion Welding Machine from RIYANG is designed to meet the demanding requirements of various applications, ensuring precise and reliable fusion welding. Key application areas include:
●Water Infrastructure: Ideal for joining thermoplastic pipes in water supply networks, guaranteeing secure and leak-free connections.
●Gas Distribution Systems: A reliable solution for welding pipes in gas distribution systems, ensuring the integrity of gas infrastructure.
●Industrial Pipelines: Suited for a range of industrial applications utilizing thermoplastic pipes, providing durable fusion joints.
●Mining Industry: The V160 BEE excels in the mining sector, delivering efficient fusion welding for pipelines critical to mining operations, ensuring dependable and durable connections for water, chemicals, or other resources.

PRODUCT DETAILS

WELDING RANGE O.D.: 50 - 160 MM PISTON AREA: 23.06 CM²
POWER SUPPLY: 220V±10%, 50/60HZ TEMPERATURE RANGE: MAX. 280ºC
HEATER POWER: 1.0KW TRIMMER POWER: 0.75KW
PACKING DIMENSION:
820*400*380 MM
440*400*520 MM
650*340*380 MM

PUMP POWER: 1.5KW WORKING PRESSURE RANGE: 0 - 80 BAR
GROSS WEIGHT: 105KGS

FEATURES

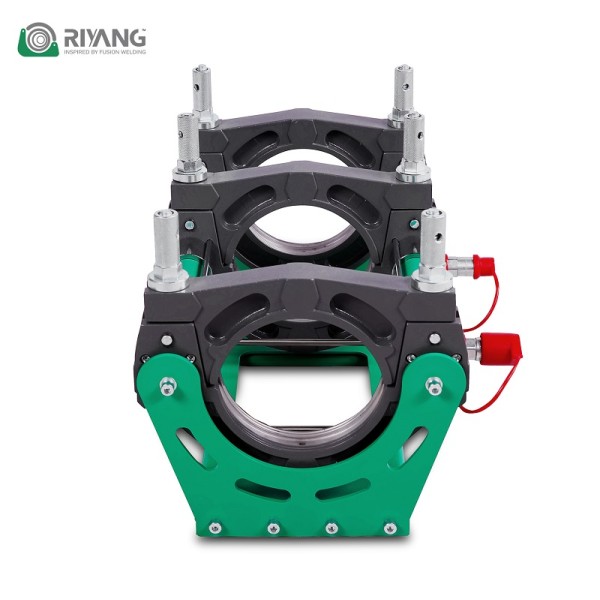

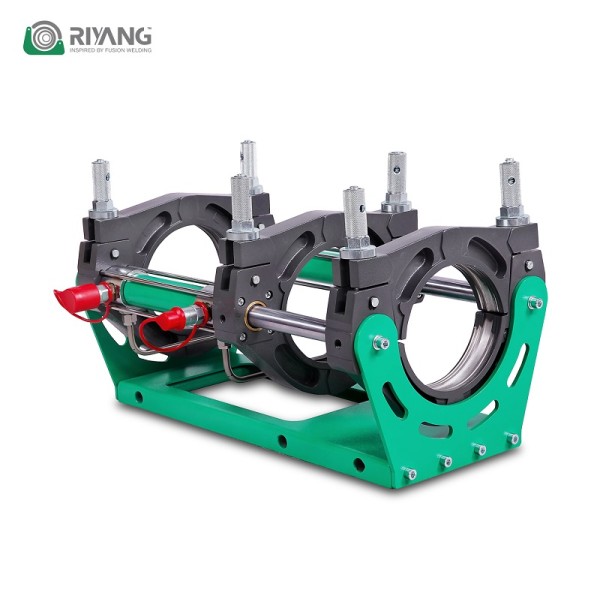

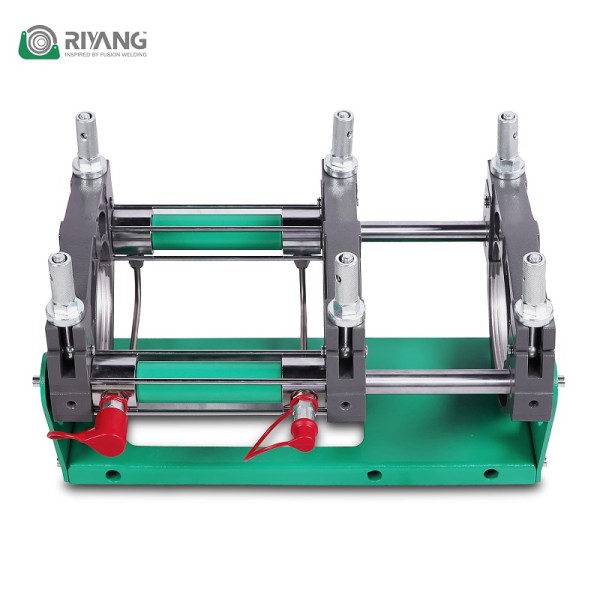

Machine Chassis

● The integral frame features a quick and detachable structure, facilitating rapid maintenance and repair.
● The compact and robust frame structure resists deformation and oil leakage when handling thick pipes with extreme parameters.
● Key hydraulic components are sourced from industry-leading suppliers, primarily from Germany, Italy, and Japan.
● Three main clamps design gives help to weld pipe with short spigt fittings.

Heating Plate

● Utilizes Teflon material from a leading industry brand, reducing adhesion between the heating plate and melted plastic for an extended service life.
● Each side of the heating plate maintains a temperature difference of less than 3°C.
● The stainless steel construction of the junction box ensures corrosion resistance.
● Employs a powerful electric drill for efficient pipe milling with a long service life.
● Ergonomic operation handle designed in accordance with ergonomic principles.

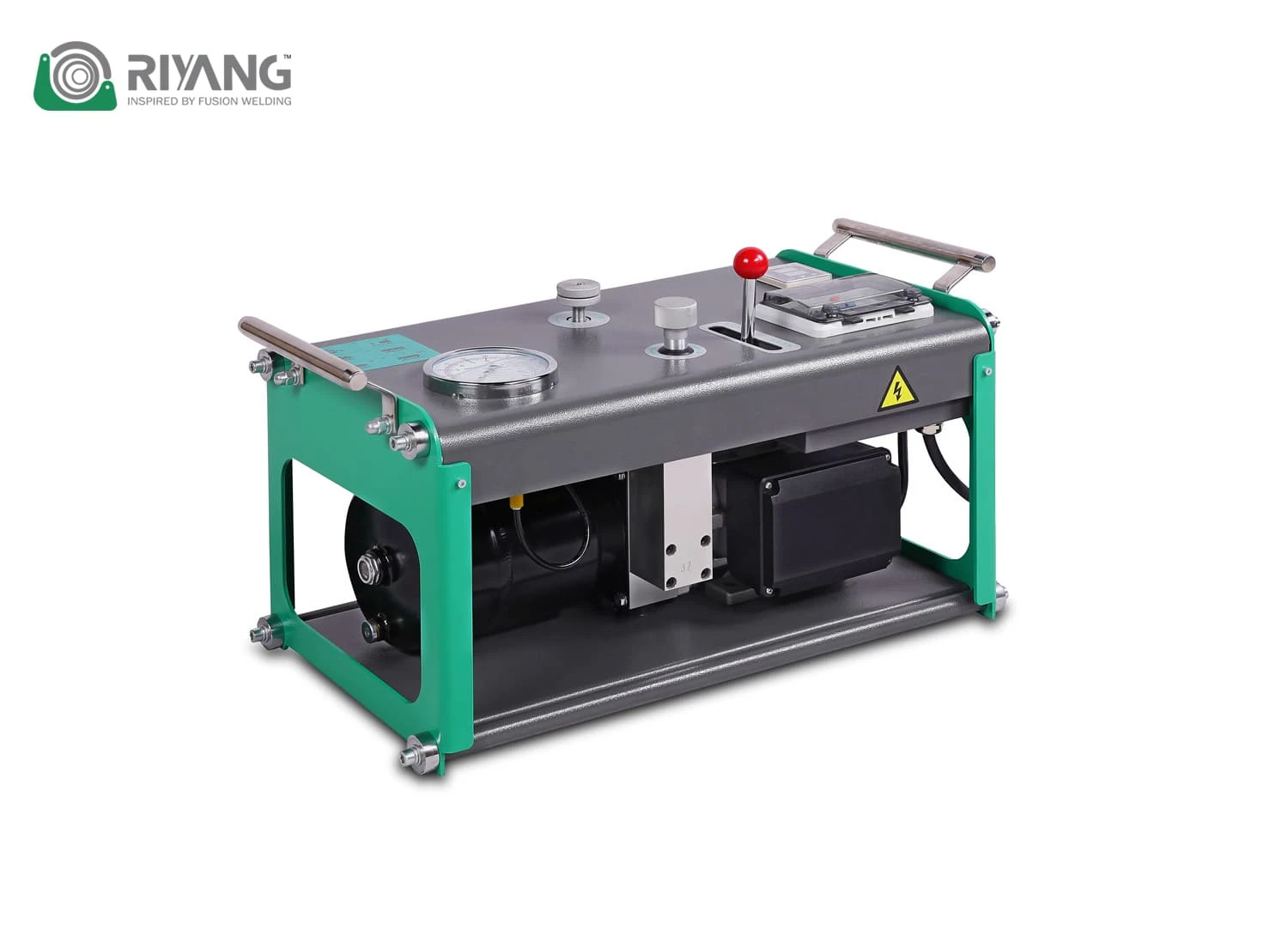

Power Station

● Robust hydraulic power with a maximum system pressure of up to 80 bar.
● Pressure valves employ cartridge valves for quick maintenance and repair.
● Precise temperature control reduces the discrepancy between actual and displayed temperature values, ensuring welding quality.
● The integral frame features a quick and detachable structure for efficient maintenance and repair.
● Compact and robust frame structure resists deformation under external pressure.
