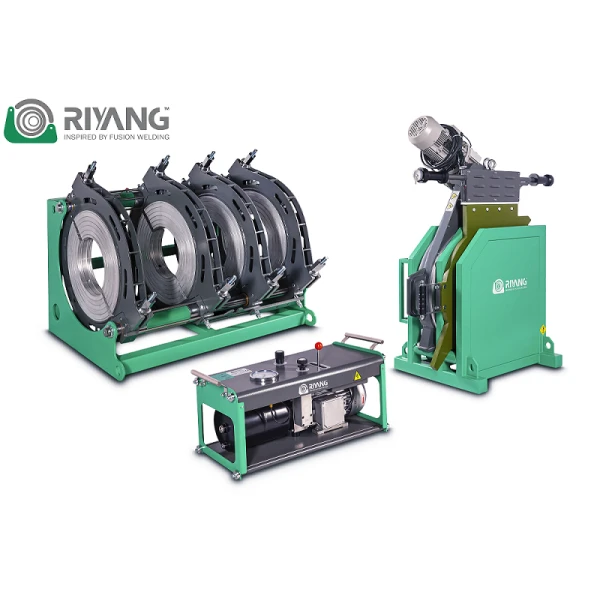

High Pressure Butt Fusion Machine V630SHP 315MM-630MM (12" IPS -24'' IPS)

The V630SHP is a high-pressure hydraulic butt fusion welding machine, also referred to as the Poly Welder or HDPE Butt Welder. Specifically designed for joining high-density polyethylene (HDPE) pipes and fittings, this machine offers a reliable and efficient solution for creating strong and durable connections in HDPE pipelines. Its robust construction and hydraulic control system enables precise pressure application and temperature control, ensuring consistent and leak-free welds.

Equipped with a heating plate, pressure control mechanisms, and a clamping mechanism, the V630SHP provides operators with the tools necessary for a successful fusion process. The machine's control panel offers an intuitive interface for adjusting parameters such as temperature and pressure, while safety features like temperature sensors and emergency stop buttons prioritize operator safety. Overall, the V630SHP Poly Welder or HDPE Butt Welder is a dependable piece of equipment that plays a vital role in the field of plastic welding, facilitating the creation of secure and long-lasting connections in HDPE pipelines.

PRODUCT DETAILS

WELDING RANGE O.D.: 315 - 630MM WELDING RANGE INCH: 12" - 24" IPS
POWER SUPPLY: 380V±10%, 50/60 HZ TEMPERATURE RANGE: MAX. 280ºC
HEATER POWER: 9.3 KW TRIMMER POWER: 1.5KW
PACKING DIMENSION:
1600*1130*1100 MM
1030*720*1350 MM
800*350*400 MM

PUMP POWER: 1.5KW WORKING PRESSURE RANGE: 0 - 180 BAR
GROSS WEIGHT: 739KGS

FEATURES

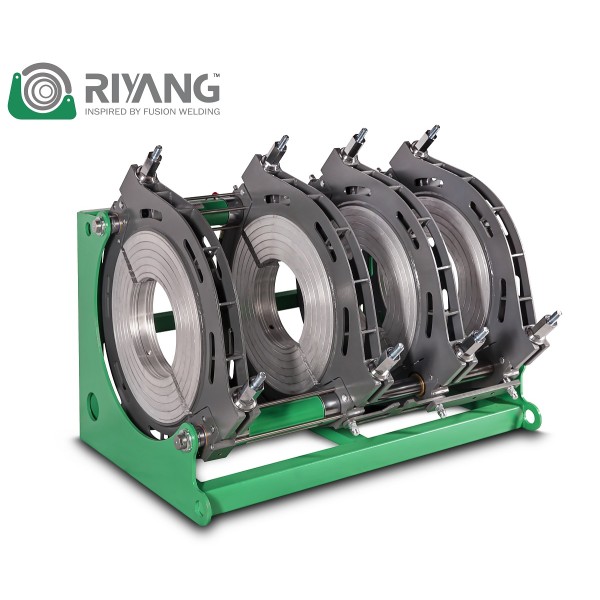

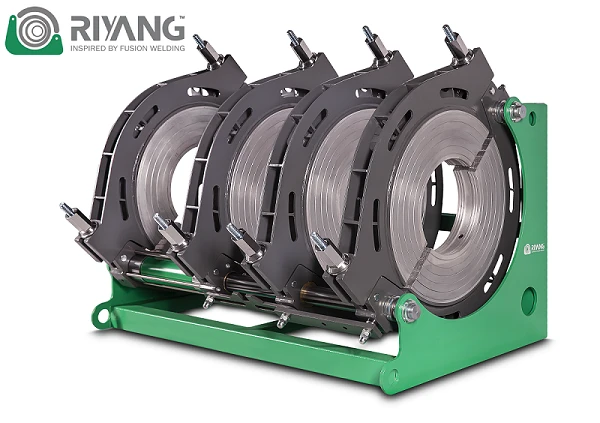

Machine Chassis

● The compact and robust frame structure resists deformation and oil leakage when handling thick pipes with extreme parameters.
● Key hydraulic components are sourced from industry-leading suppliers, primarily from Germany, Italy, and Japan.

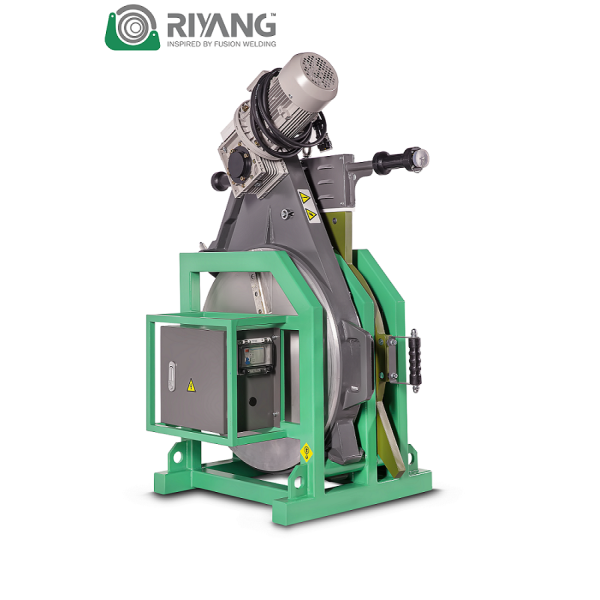

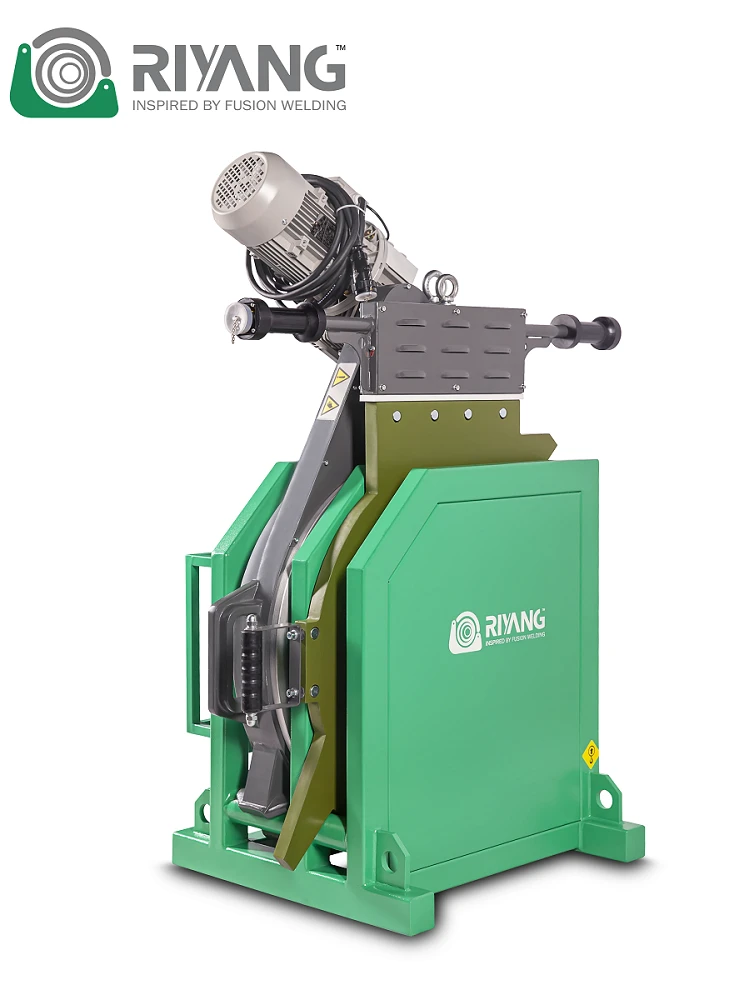

Heating Plate and Trimmer

● Utilizes Teflon material from a leading industry brand, reducing adhesion between the heating plate and melted plastic for an extended service life.
● Each side of the heating plate maintains a temperature difference of less than 5°C.
● The stainless steel construction of the junction box ensures corrosion resistance.
● Employs a powerful electric drill for efficient pipe milling with a long service life.
● Ergonomic operation handle designed in accordance with ergonomic principles.

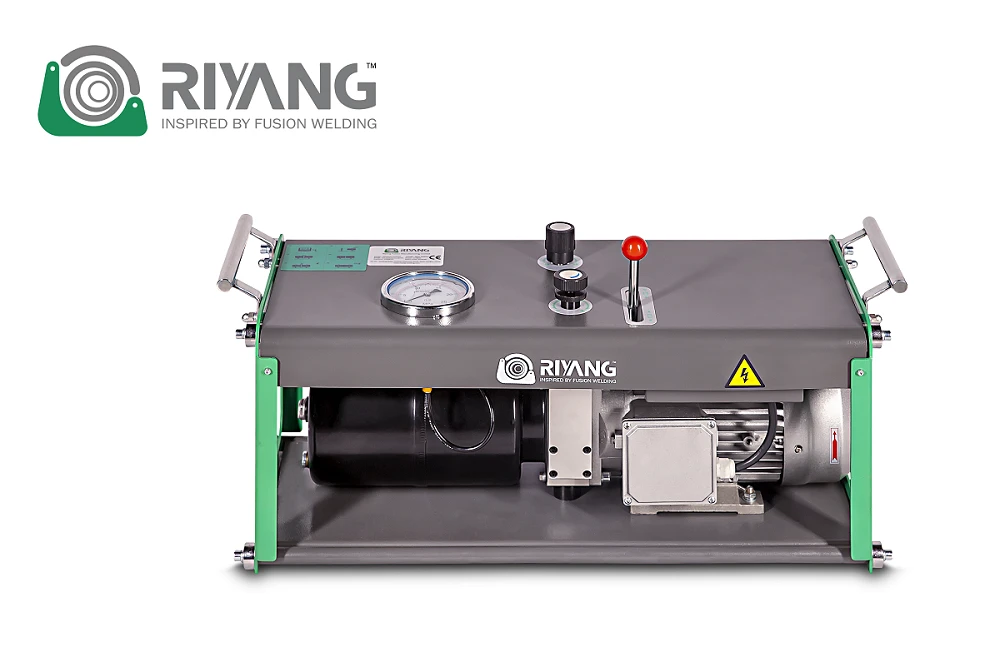

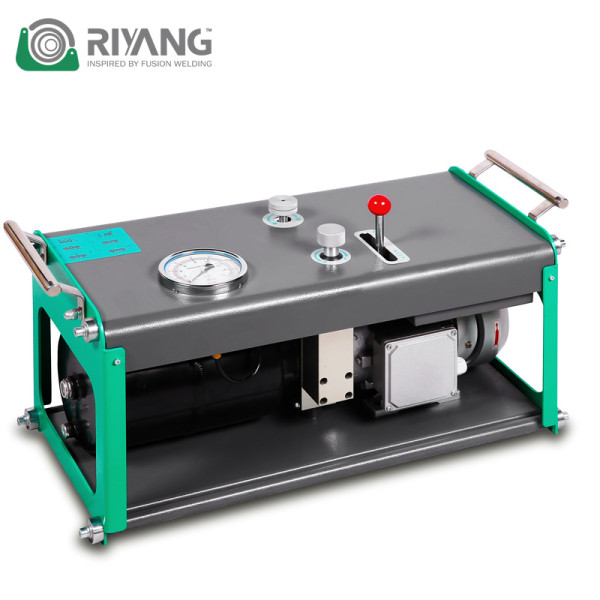

Power Station

● Robust hydraulic power with a maximum system pressure of up to 180 bar.
● Pressure valves employ cartridge valves for quick maintenance and repair.
● Precise temperature control reduces the discrepancy between actual and displayed temperature values, ensuring welding quality.
● The integral frame features a quick and detachable structure for efficient maintenance and repair.
● Compact and robust frame structure resists deformation under external pressure.
