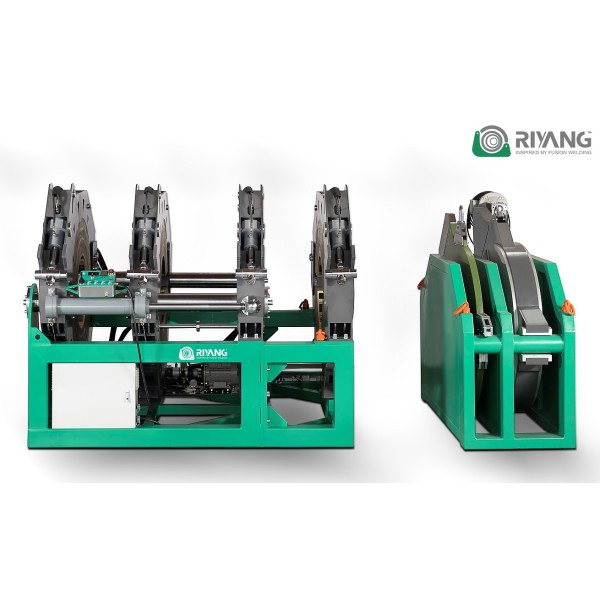

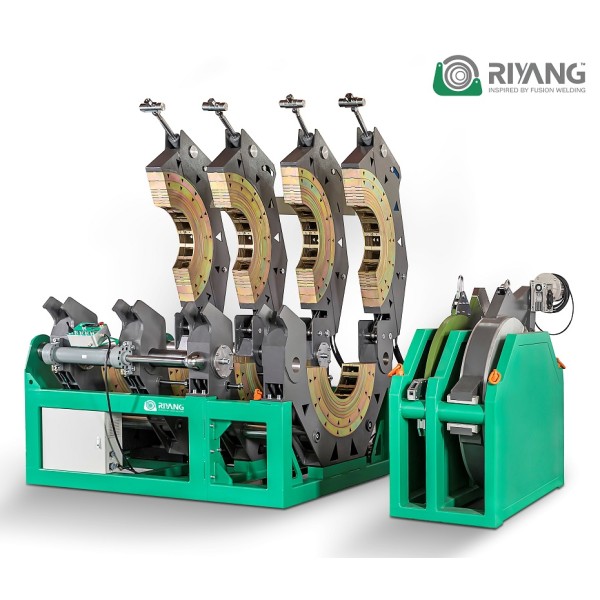

High Pressure Butt Fusion Machine V1200SHP 630MM-1200MM (24'' IPS - 48'' IPS) | RIYANG Pipe Fusion Machine Manufacturer

Categories: Hydraulic Butt Fusion Machines
Brand: RIYANG
Model: V1200SHP
Certificate: CE, ISO9001
Packing Material: Plywood Box
MOQ: 1set
Working Range in mm: 630mm - 1200mm
Working Range in Inch: 24 - 48Inch
Working Pressure Range: 0 - 200Bar
Welding Standard Applied: ASTM F2620, ISO 21307 SHP

Download: Product Info (PDF)

LEARN MORE

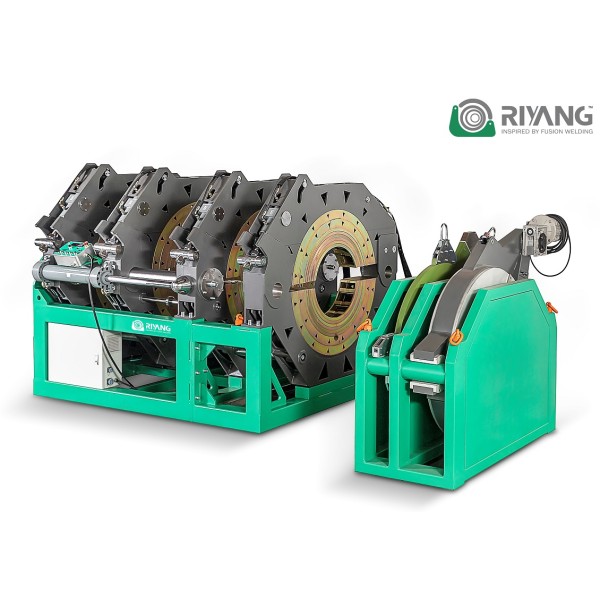

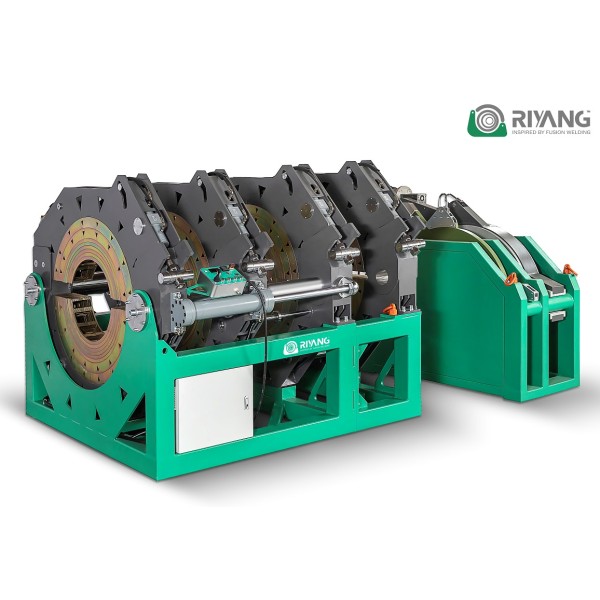

High Pressure Butt Fusion Machine V1200SHP 630MM-1200MM (24''IPS - 48''IPS)

RIYANG V1200SHP Butt Fusion Welding Machine is engineered to excel in a diverse range of application fields, ensuring robust and precise fusion welding. This includes but is not limited to:

Water Infrastructure: Perfect for joining thermoplastic pipes in water supply networks, guaranteeing secure and leak-free connections.
Gas Distribution Systems: Ideal for welding pipes in gas distribution systems, providing a reliable solution for maintaining gas infrastructure integrity.

Industrial Pipelines: Suited for various industrial applications utilizing thermoplastic pipes, ensuring durable fusion joints.
Mining Industry: Delivering efficient fusion welding for pipelines critical to mining operations. Whether for transporting water, chemicals, or other resources, it ensures dependable and durable connections.

PRODUCT DETAILS

WELDING RANGE O.D.: 630MM - 1200MM WELDING RANGE INCH: 24" - 48" IPS
POWER SUPPLY: 380V±10%, 50/60 HZ TEMPERATURE RANGE: MAX. 280ºC
HEATER POWER: 21.0 KW TRIMMER POWER: 4.0KW
PACKING DIMENSION:
3540*2600*2300 MM
2340*1700*2000 MM

PUMP POWER: 3.0KW WORKING PRESSURE RANGE: 0 - 200 BAR
GROSS WEIGHT: 4500KGS

FEATURES

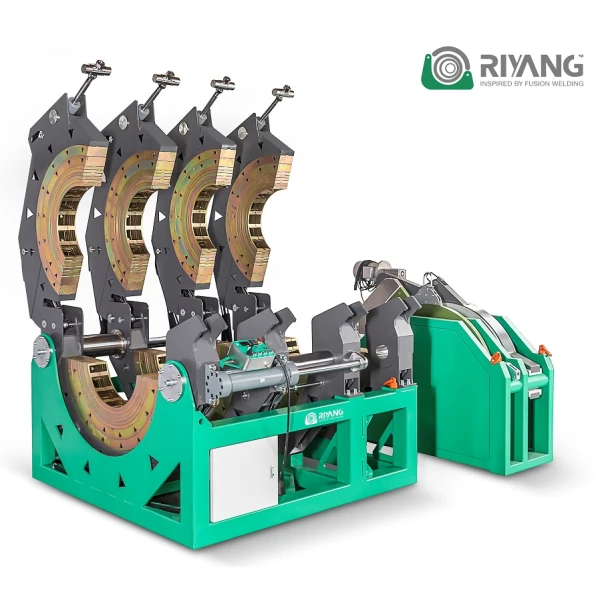

Frame Design: Adopting the innovative "3+1" design, the frame provides substantial assistance when welding short spigot fittings. The robust construction ensures stability during operation. Key hydraulic components, including oil seals, quick connectors, and pressure valves, are imported from top-notch suppliers in Japan, the United States, and Italy.

Heating Plate: The increased thickness of the heating plate guarantees minimal temperature differentials, contributing to uniform and reliable fusion. The use of industry-leading Teflon material reduces the adhesion of the heating plate to melted plastic, ensuring smooth operation.

Milling Cutter: Equipped with a powerful milling cutter, featuring a single-sided double-blade design for enhanced efficiency in pipe milling. The design facilitates more effective and precise milling of pipes.
